Slotted tops

Slotted tops are discreet drainage options for use with brick pavers, stone pavers and tiles. The discreet slots of the grate blend within the surrounding floor material for an aesthetic, sleek finish.

At ACO, we recommend the slip resistance of the grate and surrounding pavement be the same. Slotted Tops simply enable this as the slip resistance of the Slotted Top is dependent on the infill material selected.

Systems are available in a variety of sizes suitable for urban pavements, commercial buildings and residential projects.

ACO offers the industry the widest range of slotted tops in both stainless steel and galvanised steel.

Interested in learning more about specifying the right grate for your application? Click here to read more, or click here to contact us.

Sloted Top Grates

Brickslot

Brickslot has a slim 10mm slot for a discreet finish within a pavement surround of brick or stone pavers.

Access units are a vital component and provide entry for inspection and maintenance through a removable cover. The Brickslot access unit has the same single slot to continue the discreet aesthetic of the product.

Part of a complete system, the Brickslot grate fits directly into the channel recess of an ACO KlassikDrain and SlabDrain channels.

  • Single narrow 10mm slot
  • 8,000kg slow moving wheel load
Brickslot Slotted Top Grate

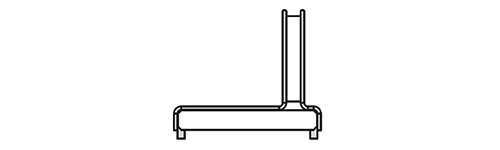

Brickslot drawing

Double Brickslot

Double Brickslot has two 8mm adjacent slots, providing an increased intake capacity. Like all Brickslot products, Double Brickslot provides a discreet finish within a pavement surround of brick or stone pavers.

Access units are a vital component and provide entry for inspection and maintenance through a removable cover. The Double Brickslot access unit has the same adjacent 8mm slots within the unit for design continuation.

Part of a complete system, the Double Brickslot grate fits directly  into the channel recess of an ACO KlassikDrain and SlabDrain channels.

  • Double narrow 8mm slot
  • 8,000kg slow moving wheel load
Double Brickslot Slotted Top Grate 2

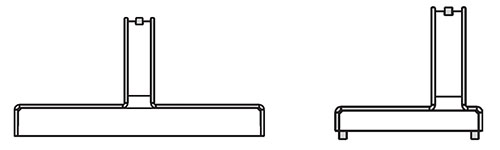

Double brickslot drawing

Twinslot

Twinslot is ideal for applications that require a wider (200mm) channel for hydraulic intake. The two parallel 10mm slots allow for additional grate intake capacity, whilst blending within the surrounding pavement.

The Twinslot access unit provides access to the channel for maintenance and continues the parallel 10mm slots for integration within the pavement design.

Part of a complete system, the Brickslot grate fits directly  into the channel recess of an ACO KlassikDrain and SlabDrain channels.

  • Double parallel narrow 10mm slot
  • 8,000kg slow moving wheel load
Twinslot Slotted Top Grate

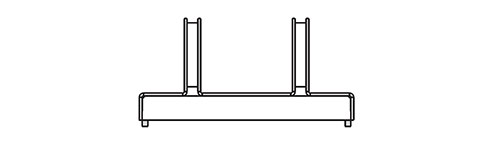

Twinslot drawing

Tile

The Tile grate design facilitates the surrounding tile to be filled into the grate for a seamless finish with shallow tiles. The Tile grate is ideal for applications such as balconies, pool areas, alfrescos and also in bathrooms.

Access to the channel is quick and easy by simply lifting the grate.

The Tile grate is part of a complete system, learn more about using it externally with ACO BuildLine and internally with QuARTz by ACO.

Tile Slotted Top Grate

Available as part of a complete drainage system

ACO Drain

ACO Drain

ACO Drain is a range of polymer concrete channels with lockable grates, ideal for external paved and shared-zone areas. Modular channels are available in various widths with a built-in 0.5% fall, so flat and drainable pavements can be achieved.

ACO Drain’s wide range of products suit general purpose, heavy duty and restricted depth applications.

Click here to learn more.

ACO Buildline

ACO BuildLine

ACO BuildLine is a range of drainage products designed to protect the building from rain and runoff at and around the building level, from the ground level up to the roof line.

These specialty products intercept and collect surface water at building thresholds, balconies, green roofs, building facades and other outdoor areas.

Click here to learn more.
